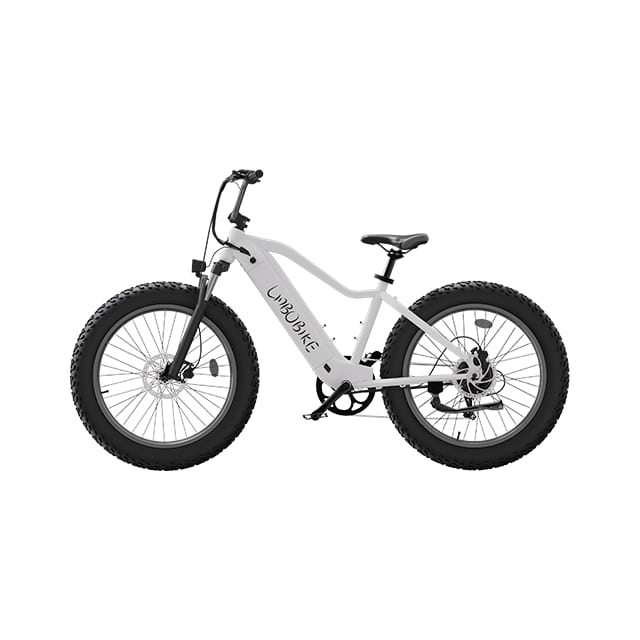

26inch Fat Tire Electric Mountain Bike City Commuting LB-DS01

Availability:
Quantity:

Model LB-DS01 Kangaroo is a 26inch electric mountain bike, can be off-road or hunting use if with off-road tire and straight handlebar. Once assembled with city tire, fender and rack, it is also can be for city commuting daily use. Its aluminum frame can ensure stability and durability in complex terrain and harsh environments. High riser handlebar is suitable for city travel riding.


Product Characteristics

1. Maximum 48V20AH battery capacity can support long range as max. 70km(assistance 1 by pedaling)

2. Side-pull design make battery removal easier and convenient.

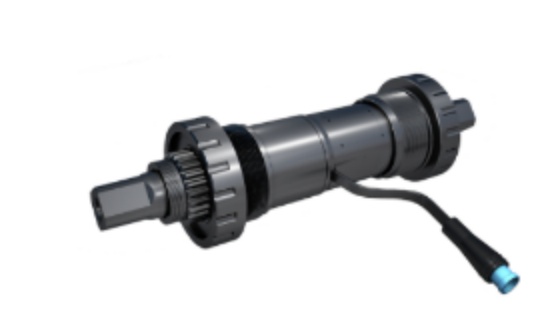

3. BB torque sensor -high precision and good linearity offering rapid dynamic response, which provides better pedaling feeling. Low power consumption based on non-contact working mechanism, guaranteeing long service life and constant reliability

4. LCD color display shows multifunction such as assist level, battery indicator, ride speed, and mileage data


Electric System


Motor Power

48V750W rear hub motor

Controller

48V9FET Sinwave controller

Throttle

Thumb throttle

Light

High bright LED headlight 8W

Display

LCD display

Charger

48V2A CE/UL/ETL charger

Sensor

Cadence sensor

Battery Option

48V16Ah lithium battery(max.48V20AH available)

Brake

Hydraulic Disc brake 180mm

Transmission


Shifter/Derailleur

Shimano 7 speed

Fork Suspension

Hydraulic suspension lockout

Seat

Comfortable seat

Handlebar&Stem

Aluminum black

Crank

170/52T  black

Wheels&Tires

26"x4.0/ aluminum /rim

Frame

26" 6061 Aluminum heat-treated

Color

Customized

Speed (km/h)

32kmh by thottle; 45kmh by pedaling;

Range Throttle km, PAS km

50-70km by pedaling

N.W(With Battery) Kg

35kg

Packing Size And Weight(LWH / KG)

163*350*830mm/45kg

Fender

Optional

Rear Rack

Optional

Production Term

60-90days

Container QTY

40HQ:130pcs
